Certification : ISO9001, RoHS, FCC, CE
MOQ : 1
Brand Name : H3C
Model Number : EWP-WA6520S-E-FIT
Payment Terms : T/T
Supply Ability : 10000pcs/month
Delivery Time : 7-10days
Packaging Details : carton
Model NO. : EWP-WA6520S-E-FIT
WiFi Antenna Type : Built-in
Transmission Rate : >200Mbps
Voltage : 12
Antenna Gain : 23dBm
Color : White
Transport Package : Carton
Specification : 185*185*35mm
Trademark : H3c
Origin : China

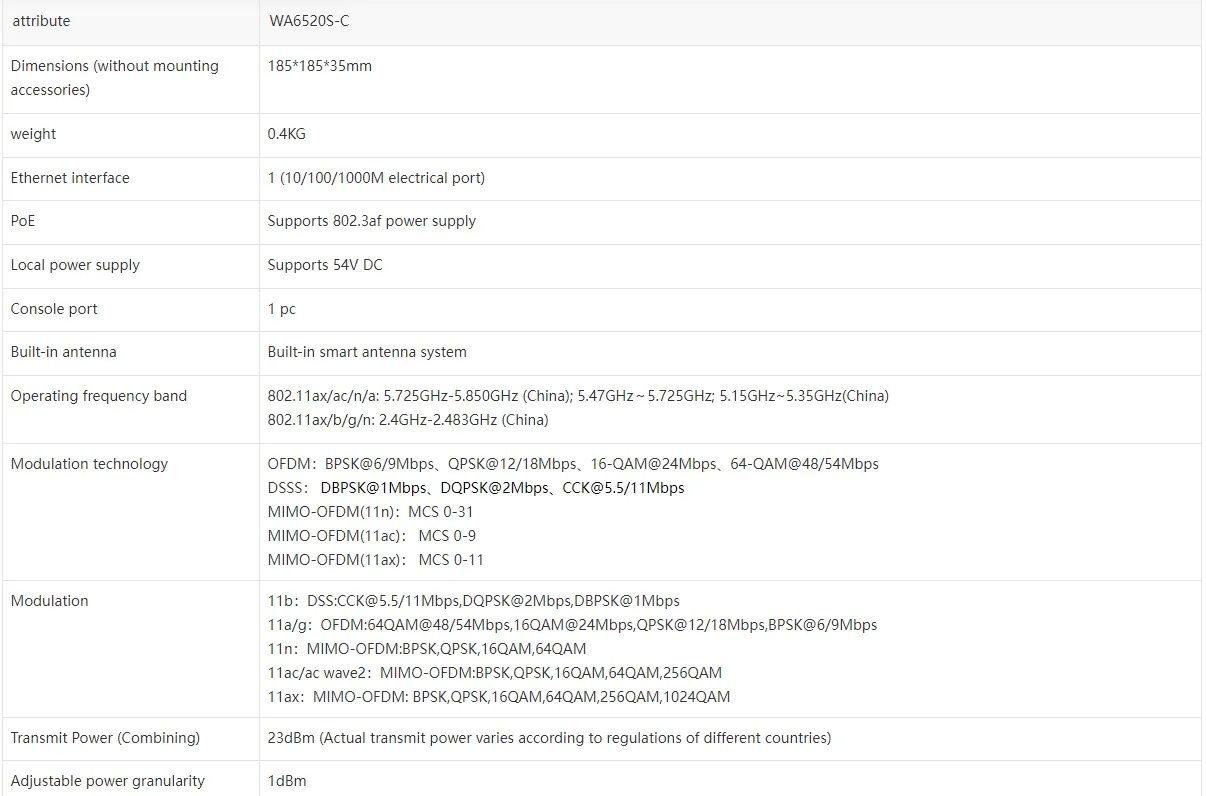

attribute | WA6520S-C | |
Product positioning | Indoor installation type (5GHz 2*2 MIMO + 2.4GHz 2*2 MIMO) | |
Working mode | Fit | Control management through AC |
Cloud(Fat) | It can be managed by the cloud network or work independently | |
Mode switching | You can switch modes from the command line, AC, Cloud Simplified Network, and Reset buttons | |
11ax support | The maximum Wi-Fi 6 (802.11ax) of the whole device is used | 2.4Gbps+0.575Gbps |
TWT | In the tank | |
BSS Color | In the tank | |
MU-MIMO | In the tank | |
OFDMA | In the tank | |
only 11ax | In the tank | |
WLAN Basics | Operating frequency band | 5GHz+2.4GHz |
The maximum number of users connected to each radio | 128 (maximum number of access users for the whole machine: 256) | |
Virtual APs (up to 5 APs per radio are recommended in practice) | 8 (16 maximum service quantity of the whole machine) | |
A-MPDU | In the tank | |
A-MSDU | In the tank | |
Maximum Similarity Demodulation (MLD) | In the tank | |
Maximum Merge Ratio Reception (MRC) | In the tank | |
Space-Time Block Code (STBC) | In the tank | |
Low-density parity coding (LDPC) | In the tank | |
WLAN Expansion | STA management | STA anomaly offline detection, STA aging, STA-based statistics and status query are supported |
Limit on the number of access users | In the tank | |
Link integrity checking | In the tank | |
Broadcast Probe request reply control | In the tank | |
Clients with weak signals are not allowed to access | In the tank | |
Hide the SSID | In the tank | |
wlan rrm | In the tank | |
Wireless bridging | In the tank | |
Repeater mode | In the tank | |
Client mode | Cloud mode support | |
Doctor AP | Fit mode support | |
Remote AP | Fit mode support | |
11k | In the tank | |
11v | Fit mode support | |
11r | Fit mode support | |
Security policy | encrypt | Supports 64/128-bit WEP, TKIP, CCMP, WPA3, WAPI encryption |
Multiple key update trigger conditions are supported to dynamically update unicast/broadcast keys | ||
802.11i | In the tank | |
authentication | Support 802.1x authentication, MAC address authentication, PSK authentication, Portal authentication, etc. Open System/Shared Key Authentication; Enhanced Open system authentication Mixed access for WPA, WPA2, WPA3, and Pre-RSNA users | |
User isolation | Layer 2 isolation of wireless users is supported SSID-based wireless user isolation is supported | |
Forwarding security | Packet filtering, MAC address filtering, and broadcast storm suppression are supported | |
Wireless endpoint admission | Wireless EAD is supported | |
The SSID is bound to the VLAN | In the tank | |
Intelligent Wireless Service Awareness (wIAA) | In the tank | |
wIDS/wIPS | In the tank | |
Management Frame Protection (802.11W) | In the tank | |
802.1X Client | In the tank | |
AAA | Radius Client | In the tank |
Multi-domain configuration of authentication servers | In the tank | |
Back up the authentication server | In the tank |
